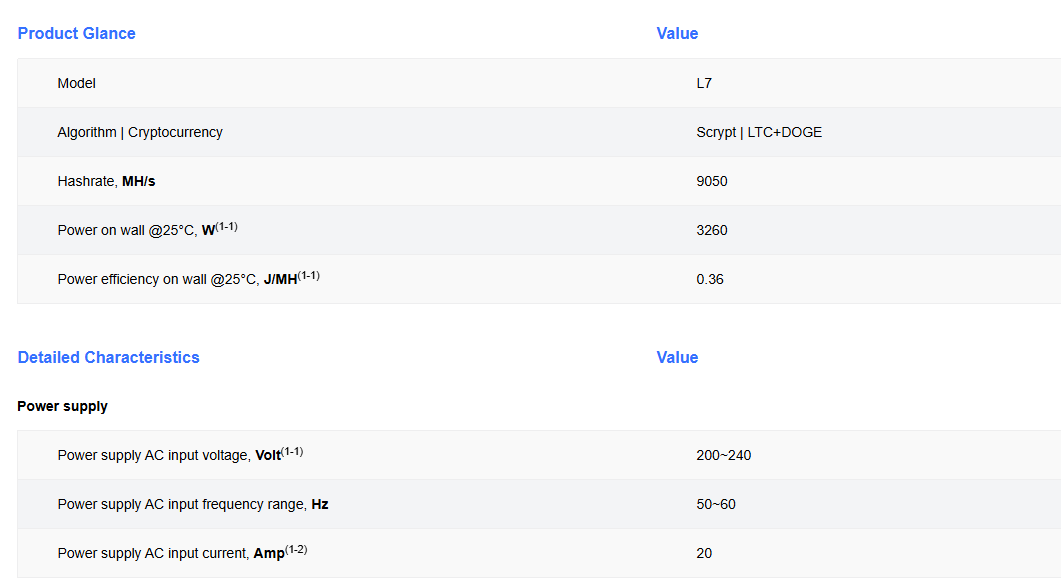

Detailed CharacteristicsValue


Power supply
Power supply AC input voltage, Volt(1-1)200~240
Power supply AC input frequency range, Hz50~60
Power supply AC input current, Amp(1-2)20
Hardware configuration
Networking connection modeRJ45 Ethernet 10/100M
Miner size (length*width*height, w/o package), mm370*195.5*290
Miner size (length*width*height, with package), mm570*316*430
Net weight, kg13.5
Gross weight, kg15.0
Environment requirements
Operation temperature, °C(1-3)0~40
Storage temperature, °C-20~70
Operation humidity(non-condensing) , RH10%~90%

Notes:

(1-1) The Hashrate value, Power on wall, and Power efficiency on wall are all typical values. The actual Hashrate value fluctuates by ±3%, and the actual Power on wall and Power efficiency on wall fluctuate by ±5%.

(1-2) Caution: Wrong input voltage may probably cause miner damaged.

(1-3) Two AC input wires, 10A per wire.

(1-4) Operation altitude is recommended below 2000m.
